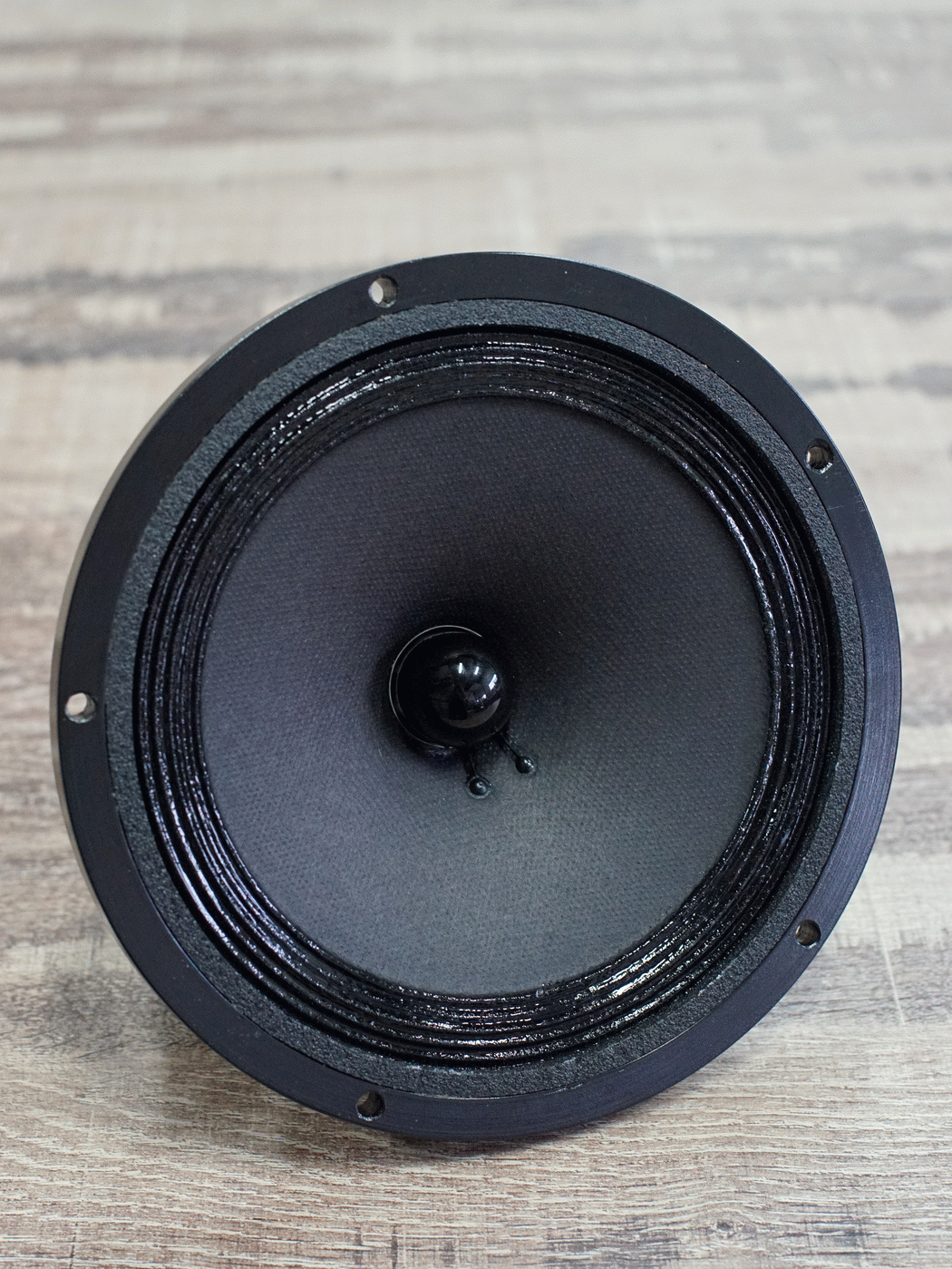

165-EXC mk2 Field-coil Broadband loudspeaker 35W / 90 to 95dB / 4 Ohms
165-EXC mk2 Field-coil Broadband loudspeaker 35W / 90 to 95dB / 4 Ohms
EXC series
The goal of the EXC series, maintaining the philosophy of SUPRAVOX, high-efficiency full-range loudspeakers. With the EXC (Excitation Loudspeaker) series, from 165 to 380 mm in diameter, the audiophile can satisfy his passion. The Supravox team, still in intense research activity, offers four evolutions of these classic references equipped with a powerful electromagnet.
The 165-EXC mk2 has a mobile assembly and a response identical to the 165-2000. Its advantage remains the possibility of adjusting these parameters thanks to a powerful electromagnetic motor. Adaptable to many enclosures, it requires an external power supply.

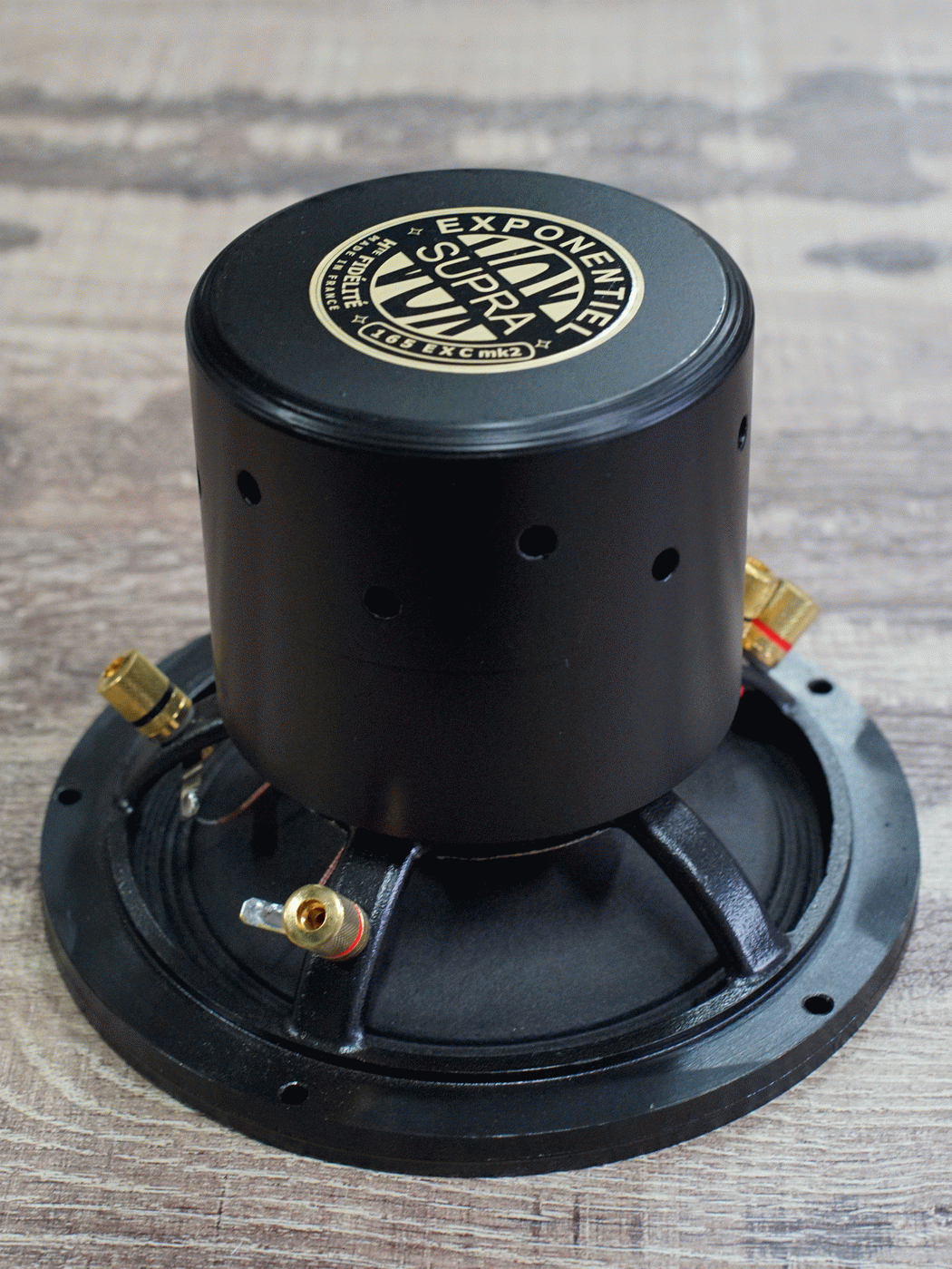

This new version takes advantage of the new ventilated excitation motor, whose field has been optimized using FEA software, its high manufacturing quality is ensured by an automatic numerically controlled winder.
Frequency response in 1/3 octaves, dBspl/1m/2.83V at 0° and 30°.
Temporal amortization.
Impedance curve.
TECHNICAL CHARACTERISTICS
Sensitivity 1 W/ 1 m at Fs: | 90 to 95dB |
Bandwidth : | 60Hz-20KHz |
Impedance: | 4 Ω |
power max. RMS : | 35W |
Suspension : | 5 ply paper |
Resonance frequency: | 65 Hz |
Linear excursion: | +/- 2.9mm |
Magnetic field : | 0 to 2T |
HP diameter: | 185mm |
Bowl thickness: | Alu 10mm |
Mounting hole distance: | 175mm |
Enclosure drilling diameter: | 160mm |
HP depth: | 95mm |
Feed : | 0 to 10 V DC. |
