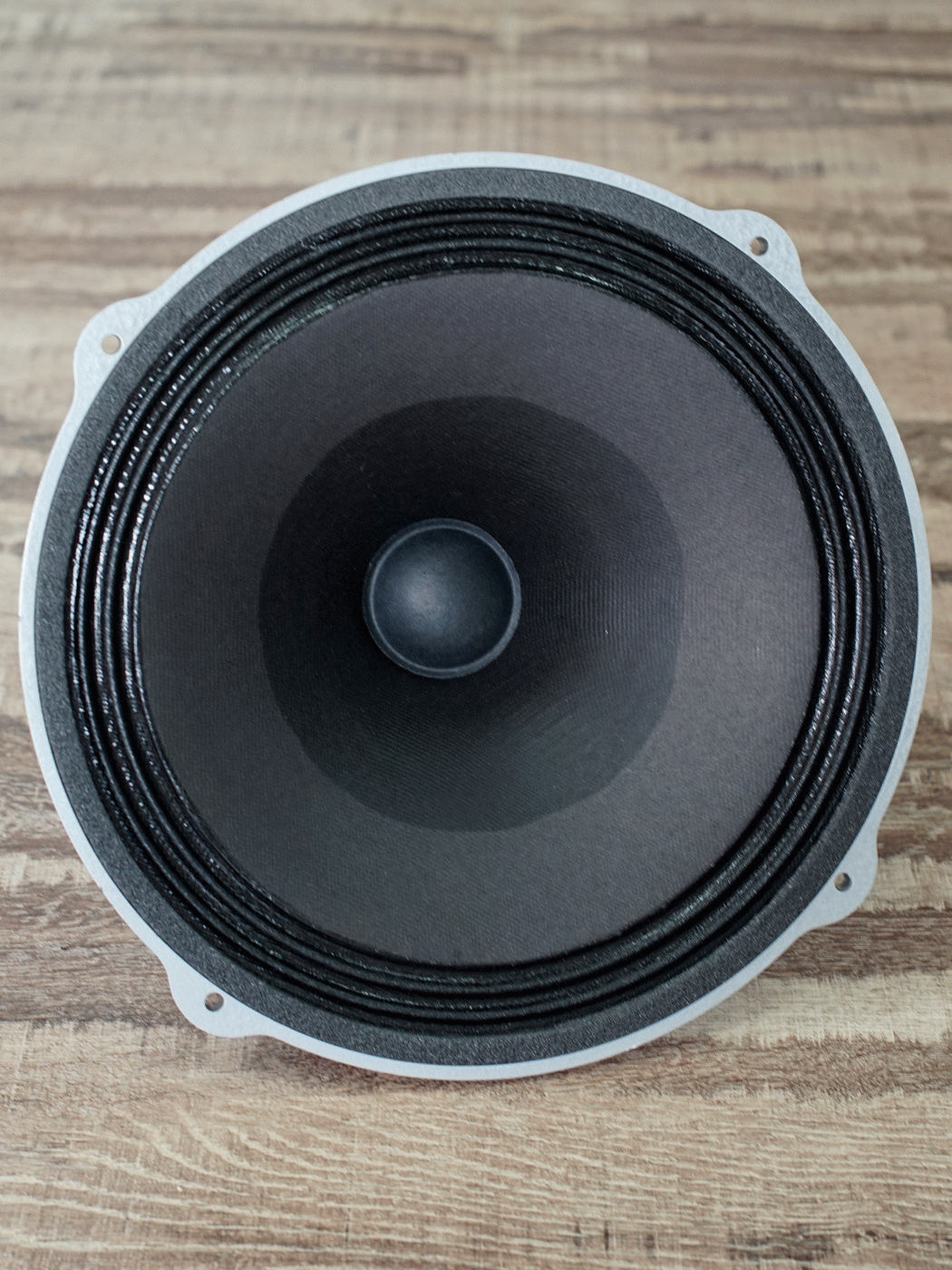

245 Heritage Extended bass-midrange driver 50W / 101.5dB / 8 Ohms

245 Heritage Extended bass-midrange driver 50W / 101.5dB / 8 Ohms

Heritage Series
The SUPRAVOX loudspeakers of the Heritage series are directly inspired by the brand's legendary products.

 This brand new loudspeaker utilizes the original cone of the "T. 245 BASSES" of the sixties. We have indeed developed this loudspeaker by starting from the original models in order to find the sound qualities that have satisfied music lovers over the past decades.The new Alnico motor, developed under FEA software, is composed of a one-kilogram central core of Alnico5. This arrangement makes it possible to capture 100% of the energy of the magnet. The magnetic field reaches 1.4T in the 8mm gap.

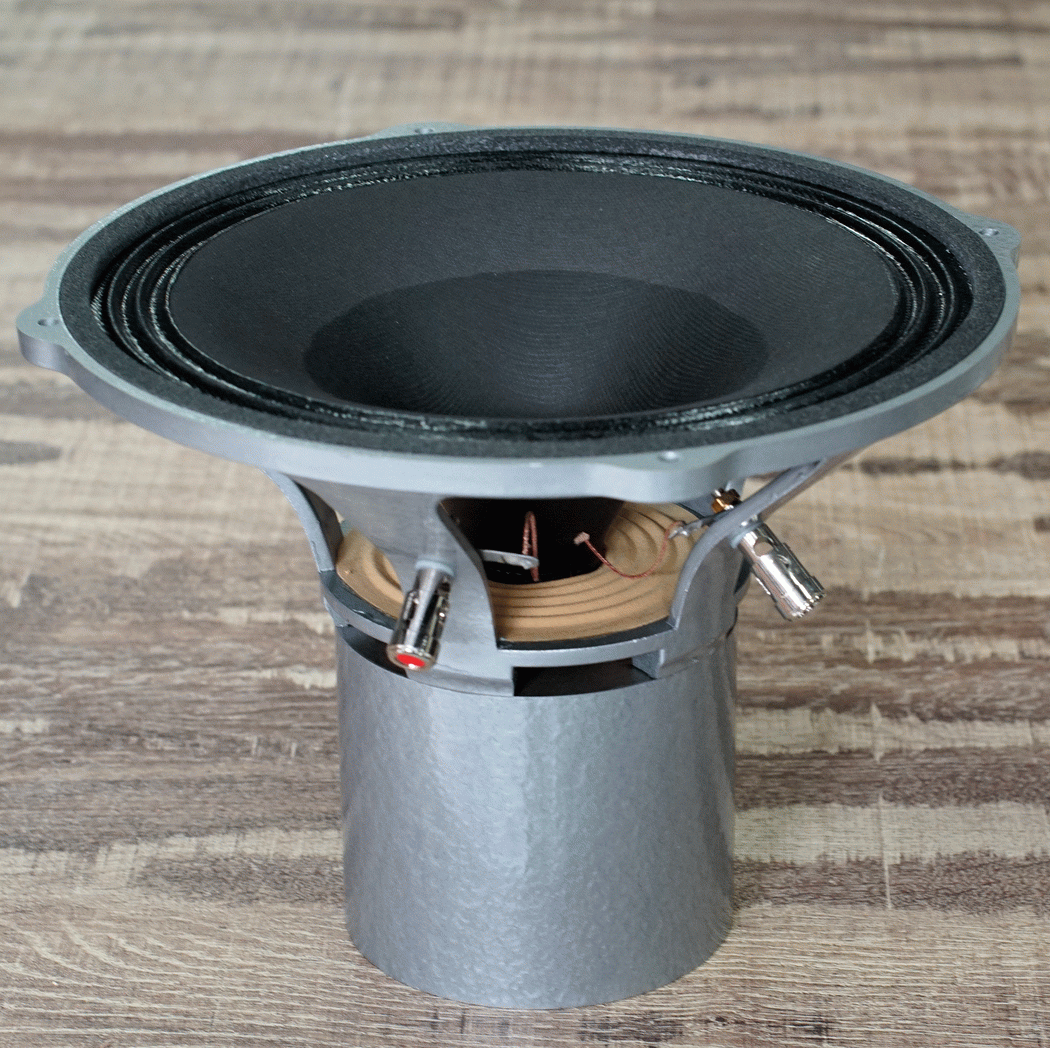

We have designed a new, very rigid injected aluminum basket, ventilated under the spider. The field of the motor has been optimized under FEA software, its high manufacturing quality is ensured by CNC machining in our workshop. For this 245 we have designed a new voice-coil, lightweight, in copper-plated aluminum wire. A thorough study of the treatment of the membrane ensures a linear and very extended response.

The great sensitivity of this transducer makes it an ideal candidate for a very high efficiency horn system, a low-midrange in a multi-way system, or in a flat baffle accompanied by a tweeter above 8kHz. A balanced and extended bass response is obtained even on a flat baffle. When listening, this driver is particularly musical due to its excellent tonal balance and low distortion.


Frequency response in 1/3 octaves, dBspl/1m/2.83V at 0° and 30°.


Temporal amortization.


Impedance curve.
Regular price €1.239,00
Regular price Sale price €1.239,00
Sale Sold out
Tax included.
View full details

Contact-us for more information
