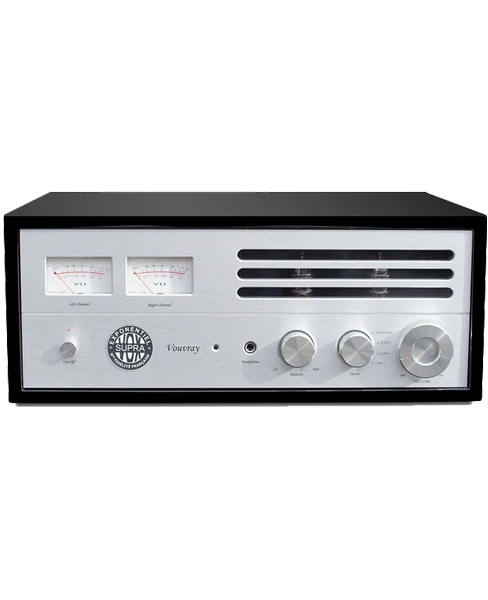

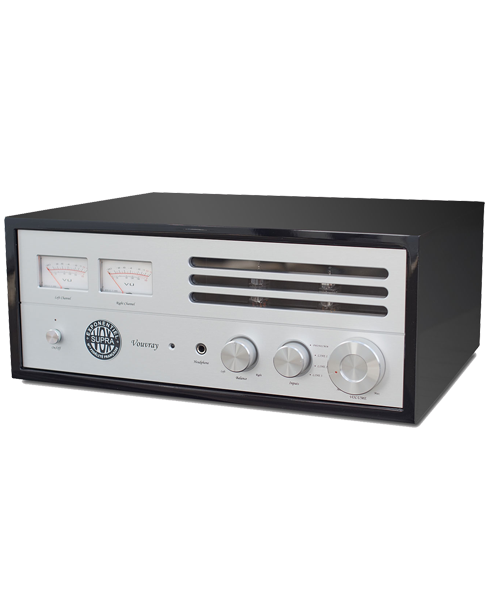

Vouvray – Hybrid Integrated Amplifier 2x70W at 8 Ohms

Product variants

Hybrid Integrated Amplifier

The Vouvray integrates a 12AU7 double triode gain stage, followed by a 2SB and 2SD series bipolar transistor phase shifter stage, and a class AB output stage with 2 Toshiba bipolars 2SA1943 and 2SC5200 mounted in push-pull. It delivers a power of 2x70W at 8Ω and 2x120W at 4Ω. With 3 lines inputs and a Phono MM input.

Its power supply transformer type EI has been specially designed to deliver the specific voltages to the input stages tube, but also a high current capacity allowing it to supply a very wide range of loudspeakers. The Vouvray offers a dynamic, rich and natural sound.

PRESSE
Article Blog Son Video.com – 2020

Article Diapason magazine N°688 – 2020

Article Haute-Fidélité magazine N°242 – 2019

Article HiFi News Décembre 2020

FEATURES

– Double triode gain stage
– 2SB and 2SD series bipolar transistor phase shifter stage
– Push-Pull 2SA1943 and 2SC5200 from Toshiba
– Power supply El
– Symmetrical filtering provided by two 10.000μF capacitors.
– 2 Vumeters indicating peak output power
– Balance and Volume settings

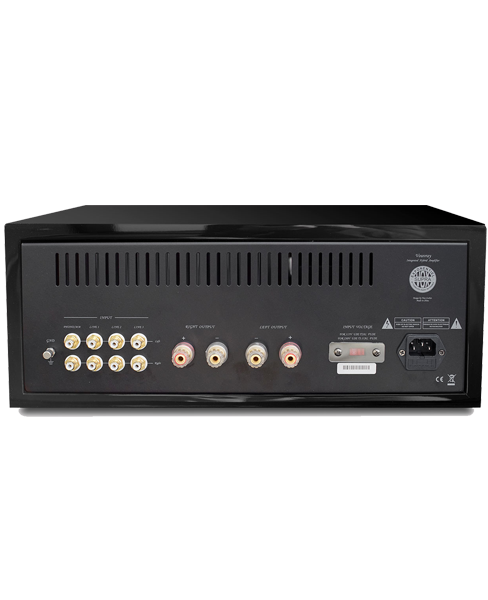

– Source selector (3x RCA line + 1x RCA phono MM)
– Infrared remote control
– Outputs 2×2 banana speaker plugs
– Input for Phono MM cell which passes through an internal RIAA correction to integrated circuits 5532
– Headphone output
– Manufacturing: France / China

SPECIFICATIONS

Output power: 70W + 70W RMS at 8Ω and 120W + 120W RMS at 4Ω
Frequency response (±1.5dB): 20Hz-20KHz
THD: 0.05%.
S/N ratio: 90dB
Input Sensitivity Line: 175mV
Input Sensitivity Phono (MM): 1mV
Input impedance: 10kΩ
Output impedance: 4Ω, 8Ω
Tubes: 2x 12AU7
Replacement tubes: 12AU7EH, ECC82, E82CC

General

Dimensions (W x H x D): 430 x 188 x 358 mm
Net weight: 19.5kg
Power supply required: 230V at ±5% (50Hz)
Consumption: 260W (230V 1.5A)
