Supravox

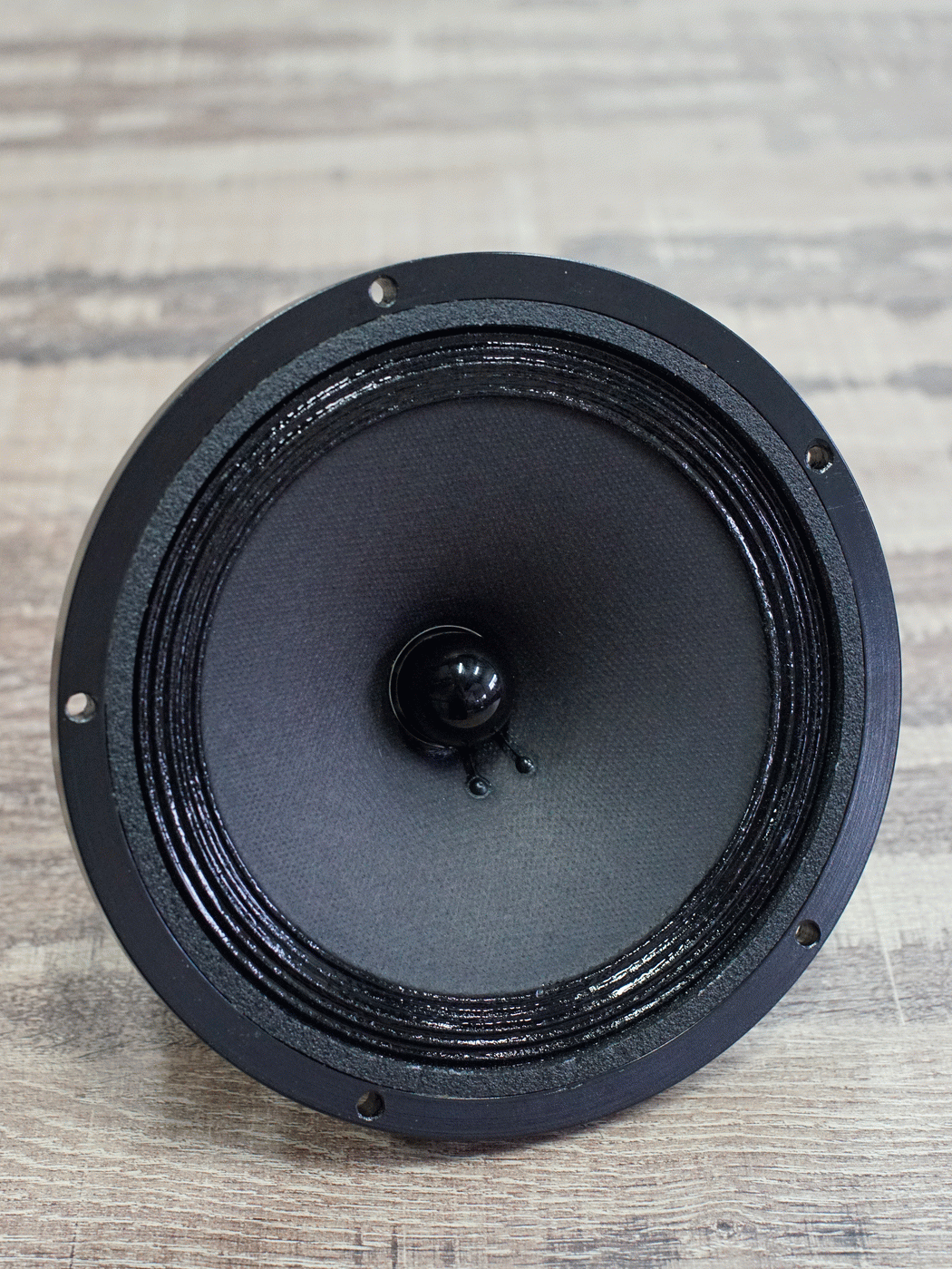

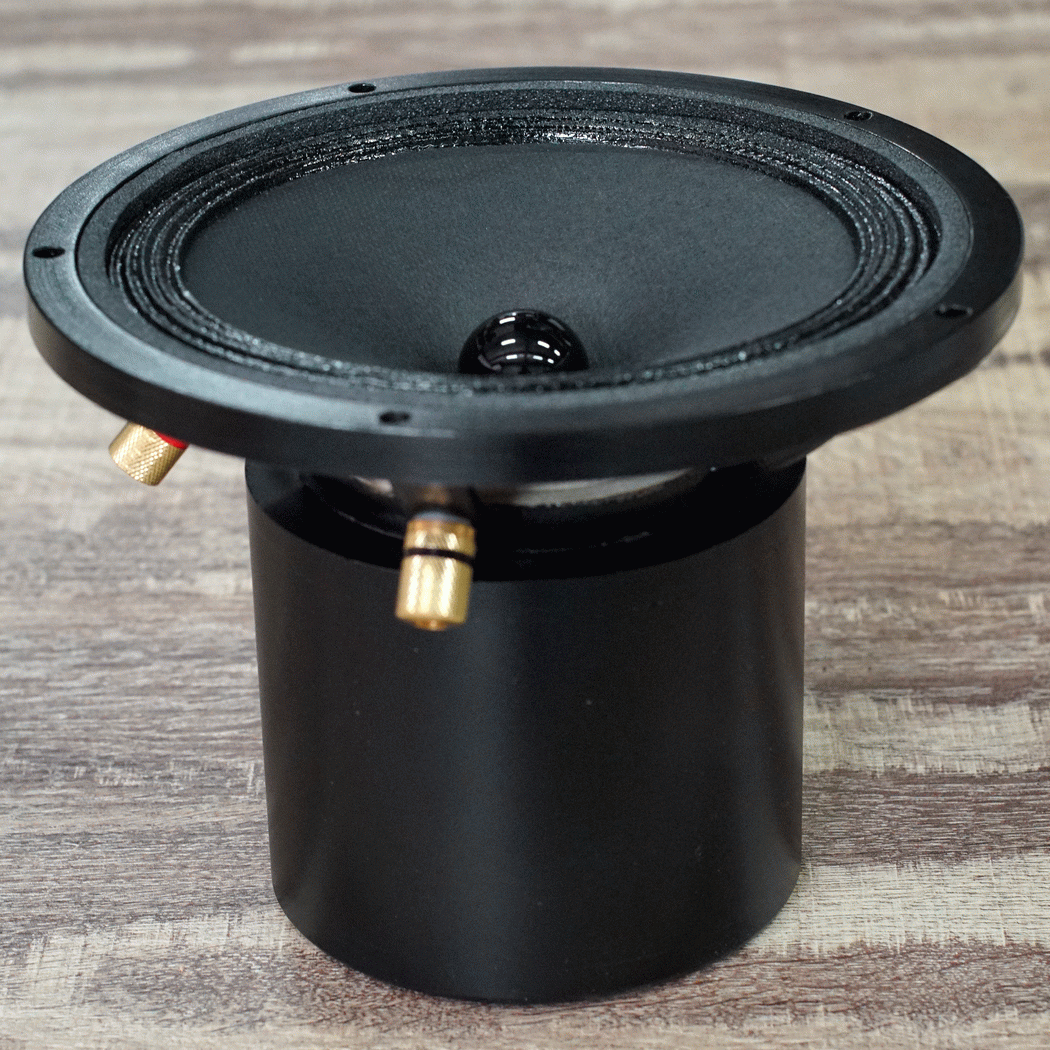

165-2000 mk2 Full range driver 35W / 96.5dB / 6 Ohms

Regular price €709,00 EUR
Regular price Sale price €709,00 EUR
Sale Sold out
Tax included.

Product sheet

EXC Series
Its objective, to maintain the philosophy of SUPRAVOX, full range drive units and high efficiency.
With EXC series (driver unit with excitation), diameter 165 to 380 mm, the audiophile can satisfy its passion. The Supravox team, always in intense activity of research, proposes four evolutions of these traditional references equipped with a powerful electro magnet.

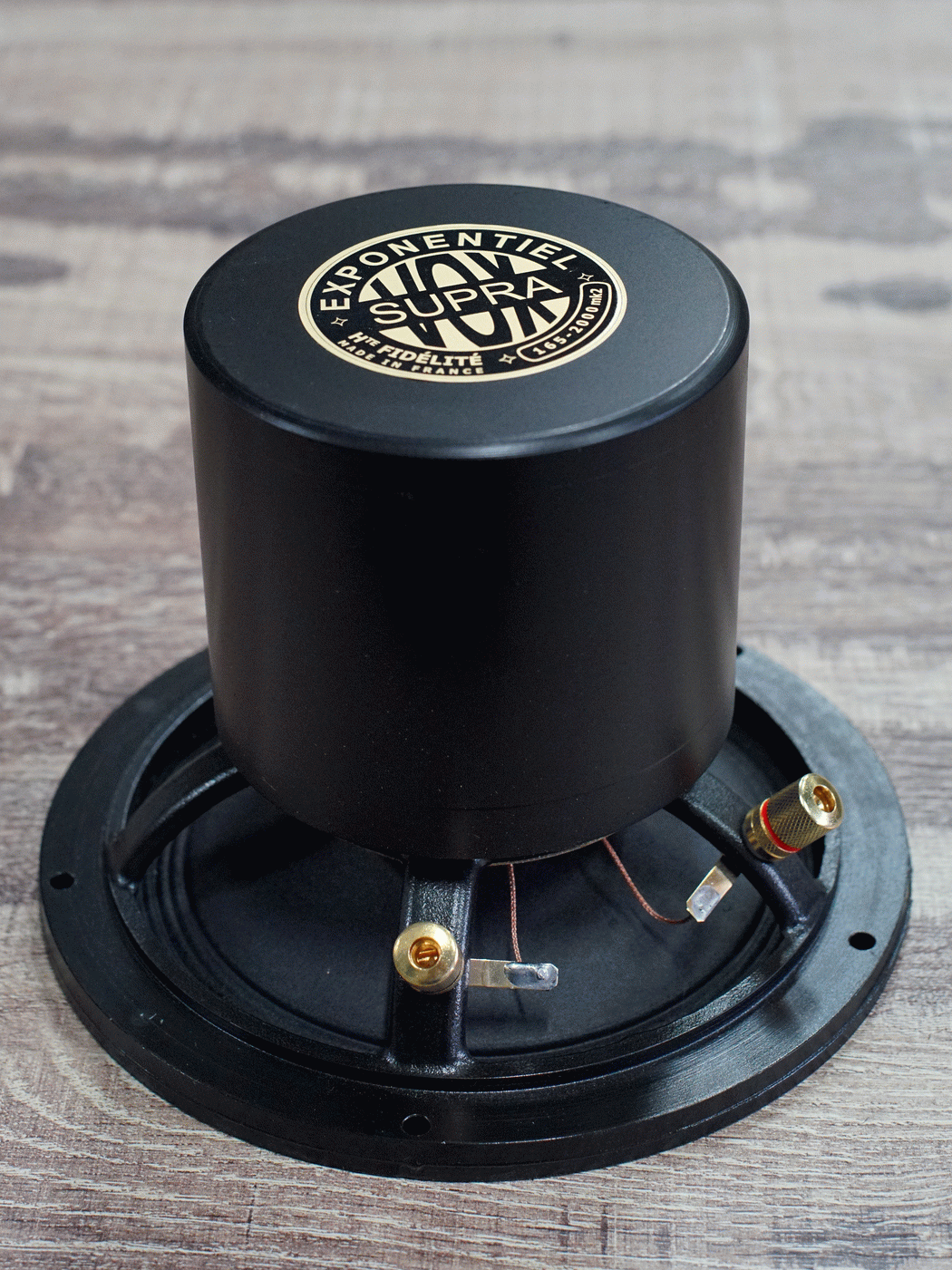

The 165-2000MKII is an evolution from the historic 165-2000 of which it utilizises the same moving parts. The new Alnico magnet has been designed under FEA software and allows for an improved homogeneity of the magnetic field and therefore a perfectly symmetrical Bl(x) curve. That allows for a lower distortion. The magnetic field reaches 1,4Tesla in the voice coil gap.




Frequency response in 1/3 octaves, dBspl/1m/2.83V at 0° and 30°.


Time depreciation.

Sensitivity curve.

SPECIFICATIONS

Below are the 2019 parameters, measured according to AES2-1984-r2003.

Efficiency (2,83V/1m) : 96,7dB
Efficiency (1W/1m) : 93,7 dB
Bandwidth : 60Hz-20KHz
Impedance : 6 Ω
Power : 35 W
Suspension : 5 paper pleats
Linear excursion : +/- 2,9 mm
Magnet : Alnico V
Magnetic field : 1,7 T
Diameter HP : 185 mm
Frame thickness : Aluminium
Diameter fixation : 175 mm
Diameter drilling holes : 156mm
Depth HP : 128mm
Fs : 76,5 Hz
Re : 4,1 Ω
Le 1 kHz : 0,09 mH
Qts : 0,70
Qe : 0,79
Qm : 6,2
Vas : 25,8 L
Bl : 3,53
Mms : 5 g
Sd : 144,7 cm²
